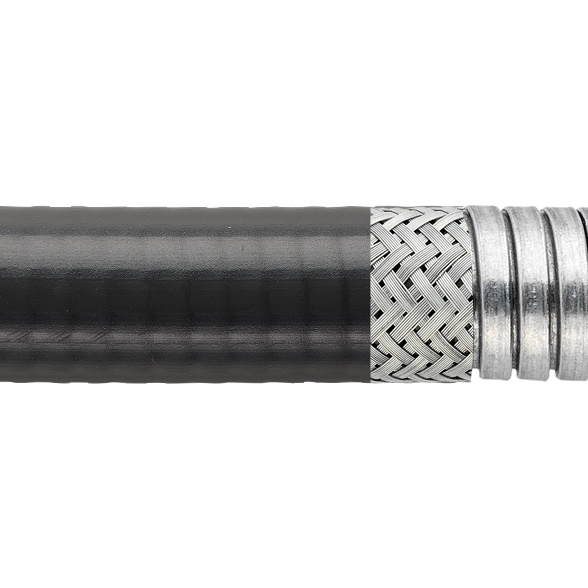

LTBRDP System
Galv steel, braided core, pvc coated, liquid tight
Properties
- Oil resistant
- Vibration and shock tested to EN61373 Cat 2
- IP66
- IP67
- IP68
- IP69
- Halogen, sulphur and phosphorus free
- Self Extinguishing
- Enhanced UV Rating
- Provides EMC screening:60dB@50MHz
- Abrasion Resistant
- EN61386 Compliant
- REACH/RoHS Compliant
- Compression Strength 400N
- Pull Off Strength 130N
- Minimum Bend Radius 65
- Temperature Range -20°C to 105°C
for 20mm size
Nominal Size (mm)
Part Number
Outside Diameter
Inside Diameter
Bend
Show Fittings
Add to Wishlist
Standards
Click the button below to view the application guide.
Metallic application guide
Click the button below to compare this conduits properties against others to find a suitable match for your requirements.
Compare this conduit with others
Click the button below to request more information about this product.
Request more information
