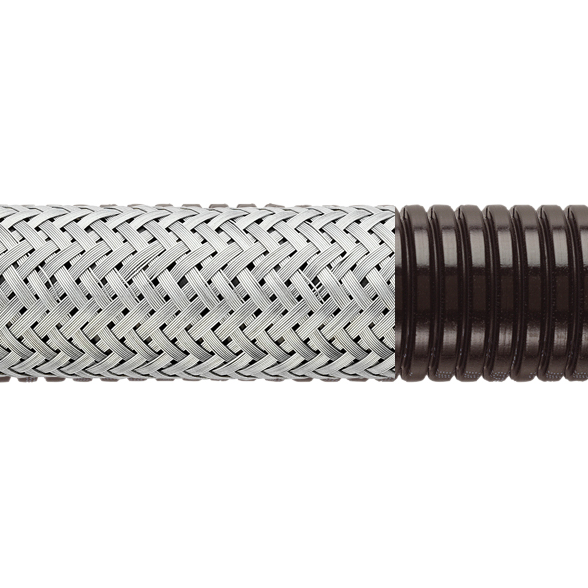

FPRTC System
Corrugated nylon, tinned copper overbraid
Properties
- Anti-static performance
- Displays self-recovering if crushed
- Extra Low Fire Hazard
- Halogen, sulphur and phosphorus free
- Self Extinguishing
- EN45545-2 R23-HL3 R22-HL3
- Standard UV Rating
- Provides EMC screening:67dB@50MHz
- EN61386 Compliant
- REACH/RoHS Compliant
- Compression Strength 75N
- Pull Off Strength 75N
- Minimum Bend Radius 45
- Temperature Range -40°C to 120°C
for 21mm size
Nominal Size (mm)
Part Number
Outside Diameter
Inside Diameter
Bend
Show Fittings
Add to Wishlist
Standards
Click the button below to view the application guide.
Non-metallic application guide
Click the button below to compare this conduits properties against others to find a suitable match for your requirements.
Compare this conduit with others
Click the button below to request more information about this product.
Request more information
