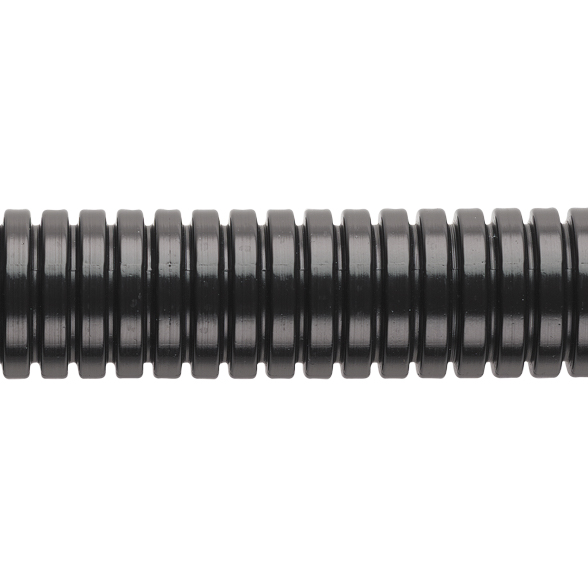

FPIH System
Nylon PA12 corrugated, heavy weight
Properties
-
- Oil resistant
- High fatigue life and high abrasion resistance
- Displays self-recovering if crushed
- Vibration and shock tested to EN61373 Cat 2
- IP66
- IP67
- IP68
- IP69
- Standard Fire Hazard
- Halogen, sulphur and phosphorus free
- Self Extinguishing
- Enhanced UV Rating
- Suitable for continuous movement applications
- UL Recognised
- EN61386 Compliant
- REACH/RoHS Compliant
- Compression Strength 60N
- Pull Off Strength 50N
for 21mm size
- Minimum Bend Radius 45
- Temperature Range -50°C to 110°C
Nominal Size (mm)
Part Number
Outside Diameter
Inside Diameter
Bend
