Hazardous

  • Multiple circuits can be fixed and terminated in one space saving time, money and reducing the number of components
  • Systems to enhance Safety and Integrity
  • Wide selection of Conduit systems to choose from depending on the environmental hazards



Hazardous

System integrity and safety are critical for this technically demanding environment.

Flexicon hazardousUsing flexible conduit allows multiple cables to share the same space and hence reduce the number of entry points required into the control box and termination area.
Combining our flexible conduit system with our Flameproof EXD glands, Contractors and Operators can ensure they mechanically protect their cabling installation without compromising on safety to protect people and assets. Our standard products facilitate tailored solutions, off the shelf, thus minimising any lead times.

Routing of cables, both power and / or data, in hazardous areas, can be a complex task requiring detailed planning. Our range offers a choice of eleven different conduits, depending on the operating environment and technical challenges faced, suitable for use with our Ex d, Ex e and Ex t fittings.

Manufactured in Birmingham, UK, our comprehensive range of Ex d (flameproof), Ex e (Increased safety) and Ex t (Dust Ignition Protection) fittings and accessories offer customers choice when it comes to specifying hazardous area approved equipment. Our products are manufactured to the latest ATEX, IEC Ex, UL and CU-TR directives and standards.

Typical Hazards & Product Considerations;


  • Ingress Protection
  • Hazardous Gases / Dust
  • Mechanical Strength
  • Abrasion Resistance
  • Chemical Resistance


  • UV Resistance
  • Corrosion Resistance
  • Fire Performance
  • Corrosion


  • Impact
  • Temperature
  • Static charge
  • EMC




UL Listed for use in USA and Canada, UL file No. E247502 (ordinary locations).
Suitable for us in hazardous locations as per NEC:
Article 501 (B)(2), Class I Div 2.
Article 502 (A)(2) & (B)(2) Class II Div 1&2.
Article 503 (A)(3) & (B)(3) Class III Div 1&2.

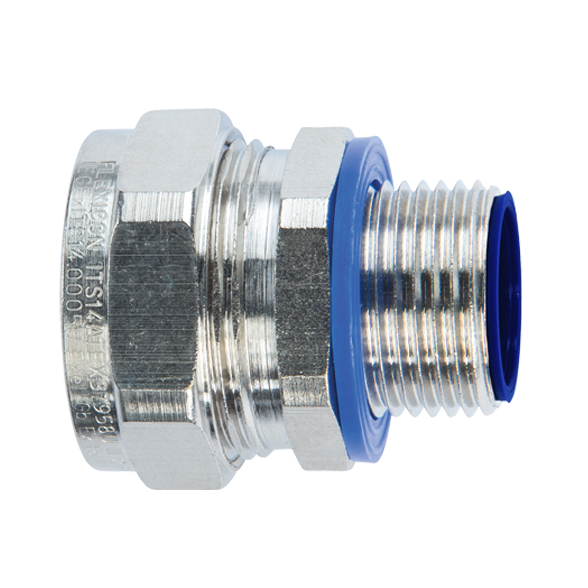

EXE – Increased safety & Dust Ignition proof
Offering Ex e (Increased Safety) and Ex t (Dust Ignition Proof) protection. Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22 Hazardous Areas when used with Flexicon’s Liquid Tight Conduit Range.

EXD – Flameproof Barrier Glands
Offering Ex d (Flameproof), Ex e (Increased Safety) and Ex t (Dust Ignition Proof) protection. Suitable for use in Zone 1, Zone 2, Zone 20, Zone 21 and Zone 22 Hazardous Areas. This gland can be used with any of Flexicon’s Liquid Tight Conduit Range.

LTP EXD:

EXD Animation Flexicon

Applications include:


  • Skids
  • Control Boxes
  • MCC (Motor Control Centres)


  • Motors
  • Lighting
  • CCTV


  • Control & Instrumentation
  • Detection & Measurement


Industry Approvals

Cable Protection for Hazardous Locations

Hazardous Locations Brochure

Click to download our Hazardous Locations Product Brochure
